Product Introduction
Overview

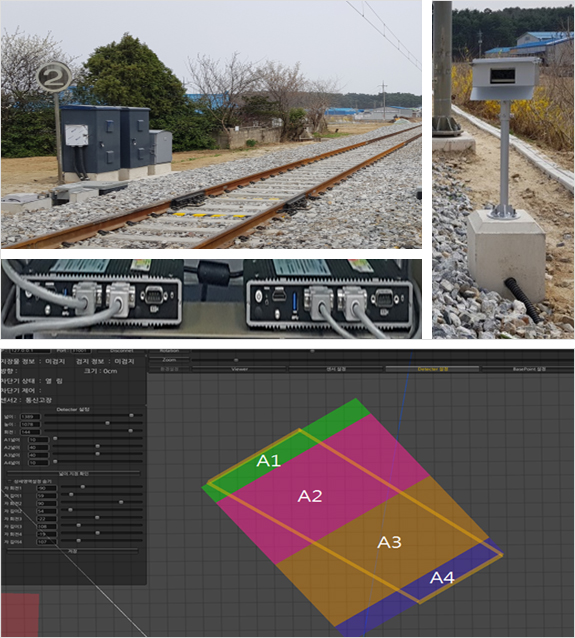

The Level Crossing Laser radar Obstacle Detection(LX-LOD)is installed at the level crossing and detects obstacles in the level crossing when a train approaches and passes through, and controls the obstacle warning light and the barrier at the exit.
[Characteristics]
Control part
- High versatility (hot standby)
- Easy detection area setting
- Event log record/save
Sensor part
- High versatility (hot standby)
- Detection distance : 0.5–50 m
- Detection angle : less than 110°
- Operation temperature : -40 – +70°C
- Data I/F : TCP/IP, RS-232
- Supply voltage : 9–27 Vdc

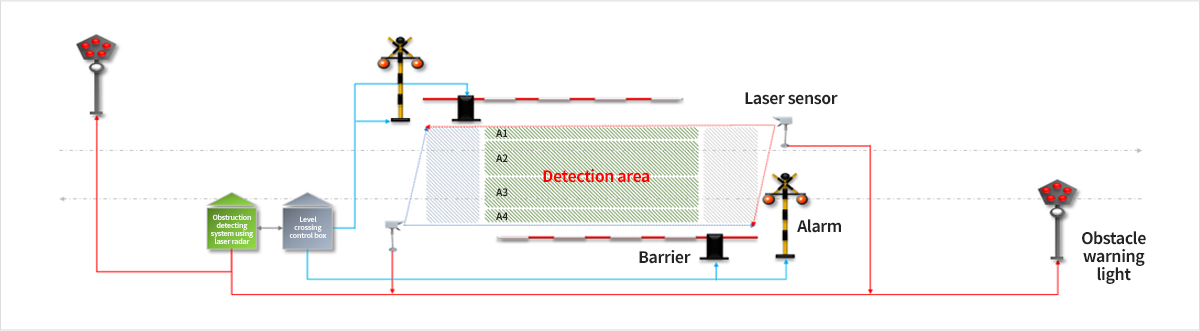

System Configuration
